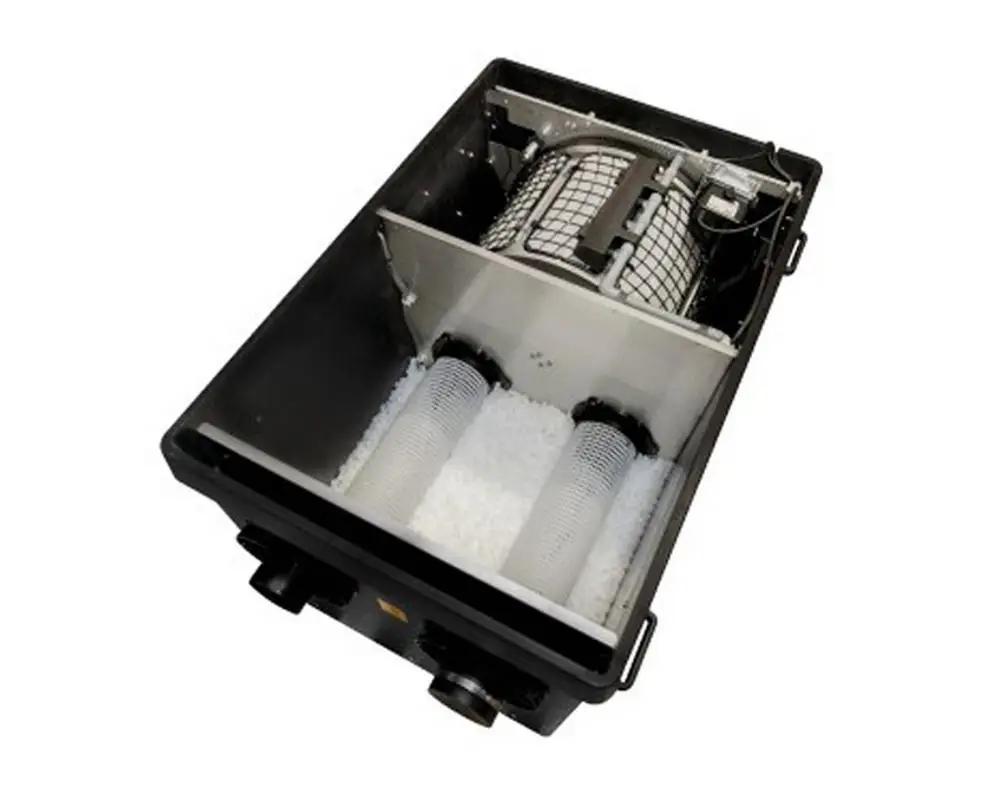

Oase Proficlear Premium Compact-L (Pumped)

SKU: SKSFS1983 Category:

£5,807.05

Loading...

Description

This new compact drum filter of the ProfiClear Premium series is the inexpensive alternative for small to medium-sized bodies of water.?The compact modular filter system is ideal for koi ponds up to 30 m? in particular.?Leading koi experts were consulted in developing the range.?In the pumped principle, the maximum water flow through the filter is 20,000 liters per hour.?With this completely self-cleaning drum filter unit, the moving bed system ensures optimal water movement and cleaning.?Professional Hel-X bio-media effectively break down nutrients and pollutants in the water.?A depth filtration of up to 60 microns and a new Hel-X 13 filter medium with a significantly larger surface ensure the high separation efficiency.

  • Suitable for ponds up to 120.0 m?
  • Conveniently control all settings via an app with the Easy Garden Control System (EGC);?Existing systems can be upgraded using the separately available upgrade kit
  • Inexpensive alternative for smaller ponds, particularly koi ponds

Technical Data

Dimensions (L x W x H) mm 1334 x 891 x 815
Rated voltage 230 V / 50 Hz
Power consumption W. 5
Power consumption, cleaning W. 1050
Cable length m 5.00 + 1.00
Net weight kg 133.00
Limited warranty Years 2 + 1
Biological filter surface m? 57.3
Biological filter surface protected m? 48.4
Control unit Microcontroller
Temperature display Digital
Coarse debris extraction ?m 60
Number of nozzles / rinse quantity 4 x 2.5 l / min
Scavenging pump 6 bar
Automatic rinsing system manually, sensor, time interval
material GRP Duroplast / stainless steel
Number of inlets Units 2
Inlet connections mm 50
Inlet connections 1 x 2 “+ Bitron
Number of outlets Units 2
Outlet connections DN 110
Sludge discharge connections DN 75, DN 110
Flush through connection DN 110
Connection to AquaOxy 2000, Bitron C 72 – 110 W, Bitron Eco 120 – 240 W
Min. Flow rate l / h 10,000
Max. Flow rate l / h 20000
Installation height above water level cm 37.0
Type of use Pump fed system
Other Aeration pre-installed
incl. 60l Hel-X 13 Biomedia

?
